Generates and receives audio and visual signals to test:
- Function and quality of acoustics and visual equipment in an environment
- Audio and video input and output
- Sound and video quality
The Toolbox can be used in auditoriums, concert halls, performance spaces, conference rooms, and other venues to test local and remote microphones, speakers, and video screens

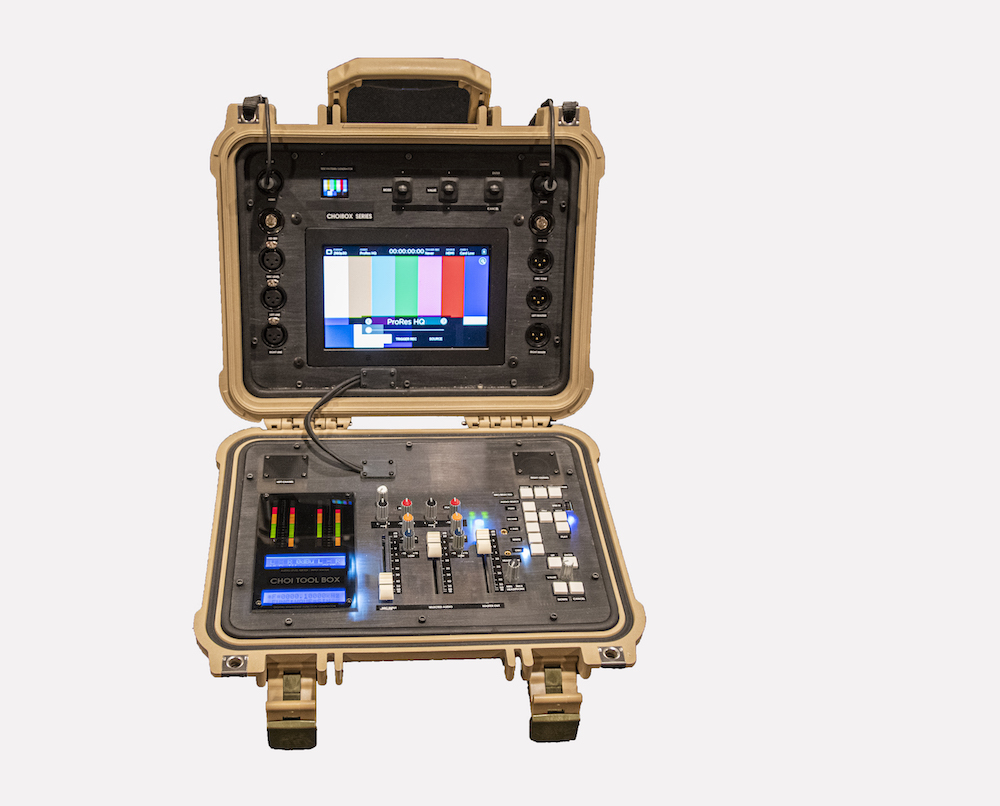

The Toolbox Case is configured with a number of audio and video inputs as well as outputs with various signal and resolution options. Video inputs/outputs allow various monitors and systems to be tested and compared. Audio interface provides balance and unbalanced input/output with mic and line level signals.
- Audio mixer: 1Ch microphone with Phantom power On/Off capability
- Program stereo line level input with tone control
- Separate ch master slide fader control
1. Digital synthesizer 0hz to 50Khz + 0.001 hz resolution. SIN, TRI, SQR wave.
2. Pink, White noise
3. Digital audio de-embedder
4. External balance audio
5. External unbalance audio
6. FM radio
7. MP3, WMV file player (USB, SD memory)
8. Bluetooth audio receiver
1. Signal pattern generator 480i,p, 720p, 1080i,p, 4K
2. Pre-recorded video (internal memory)
3. Video pass through
1. Internal stereo mode speaker with sub woofer
2. Internal voice mode full range speaker
3. Audio recording MP3 format
4. Headphone
1. 5" display native resolution 1920 x 1080
2. Video recorder 1080p
1. 106 element .5Db resolution audio level meter Input and Output
2. 5" touch display with input signal information
