- Global Control Unit

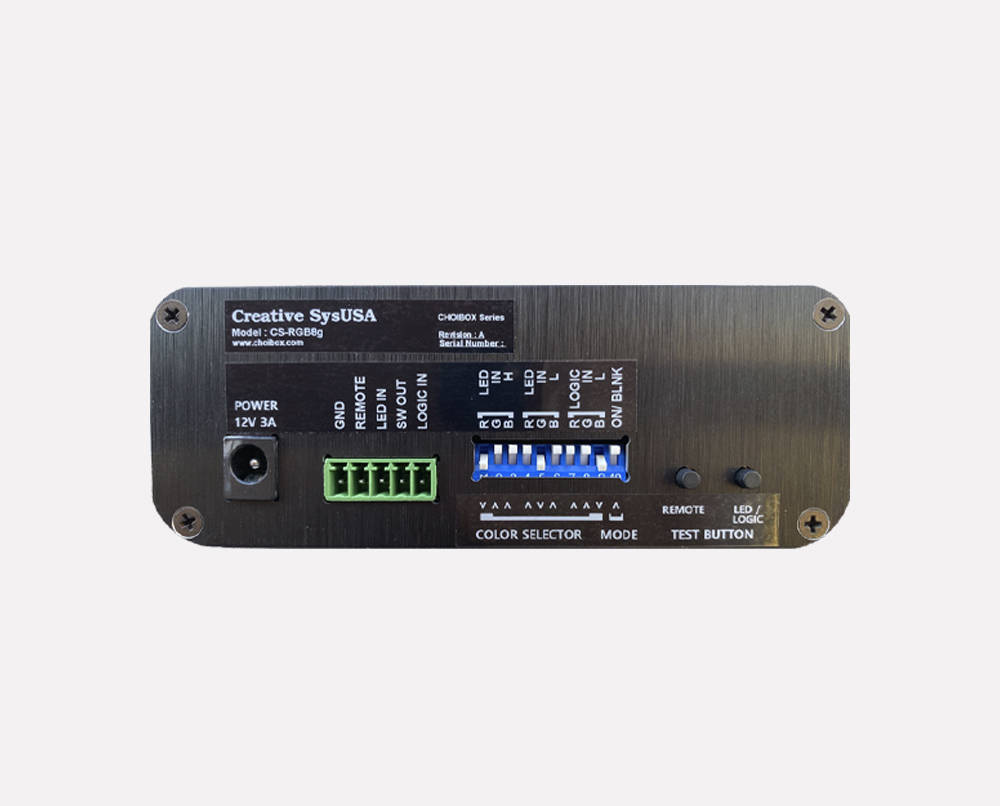

- The CS-RGB8g is a simple interface box for microphone mute buttons and multi color LED indicators
- LED indicator colors can be selected from 7 different color choices
- Additional logic pin can create either blinking or solid LED indication with custom colors (fire alarm indication or incoming call indication)
- All LED indicators are dim controllable
- Compatible with ClockAudio TS001, TS003, TS005, SWP2, and Touch Switches
- Supports the MRA HUSHBUTTON
- Can interface with Shure MX Series microphones
- Two test buttons for easier field function tests without an external control frame
- Up to 8 LED switches can be connected to one CS-RGB8g
- Daisy chain multiple CS-RGB8g for a larger quantity of LED switches
- Can be interfaced with most control frames and DSPs (Crestron, AMX, Biamp, QSC, ClearOne, BBS, etc.)
- Connects with dry contact for logic level interface devices
